Ai 316L Grade Stainless Steel Reactor Features
- Horizontally mounted condenser for low center of gravity.
- Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
- All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
- Shell and tube heat exchanger for the best condensing results
- ElectroPolished internal chamber
- Greatly reduces surface roughness by leveling micro-peaks and valleys
- Improved vacuum pressures, out-gassing rates, and pumping speed
- Prolong equipment lifespan by reducing friction and wear
- Much better sterilized and semiconductor grade surface
- Essential for the food and pharmaceutical industries
- Detachable condenser and collection tanks
- Dual collection tanks with big sight glass allows you to drain without breaking vacuum
- High drain port clearance for easy draining or added filtration
- Large ports (top 12" bottom 6") allows easy chamber cleaning
- Top placed vacuum port on condenser provides better flow and condensing results
- No messy cable, with space saving integrated stirring motor controller
- Heavy-duty stainless-steel frame with swivel casters
- Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
- Flexible bellow condenser connection reduces shipping damage
- Electric motor and controller model is ETL certified to UL and CSA standards
- Peer reviewed model (Pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane
CAUTION!
- Across Internationalis not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
- Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
- Always leave ample fluid space in heater reservoir to allow fluid heat expansion

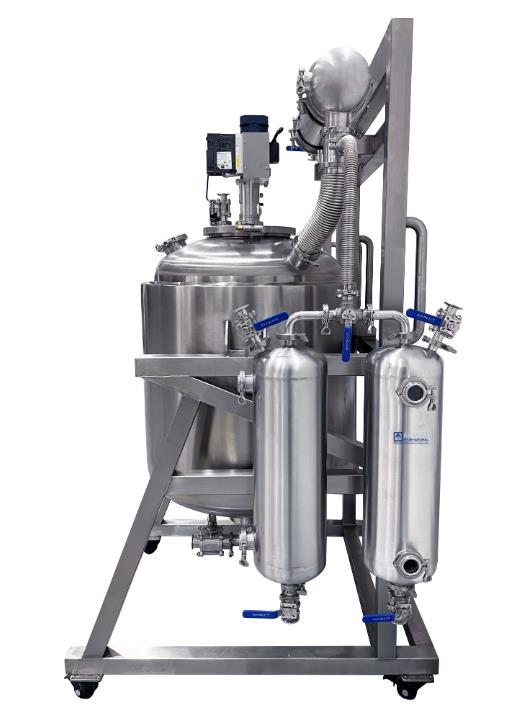

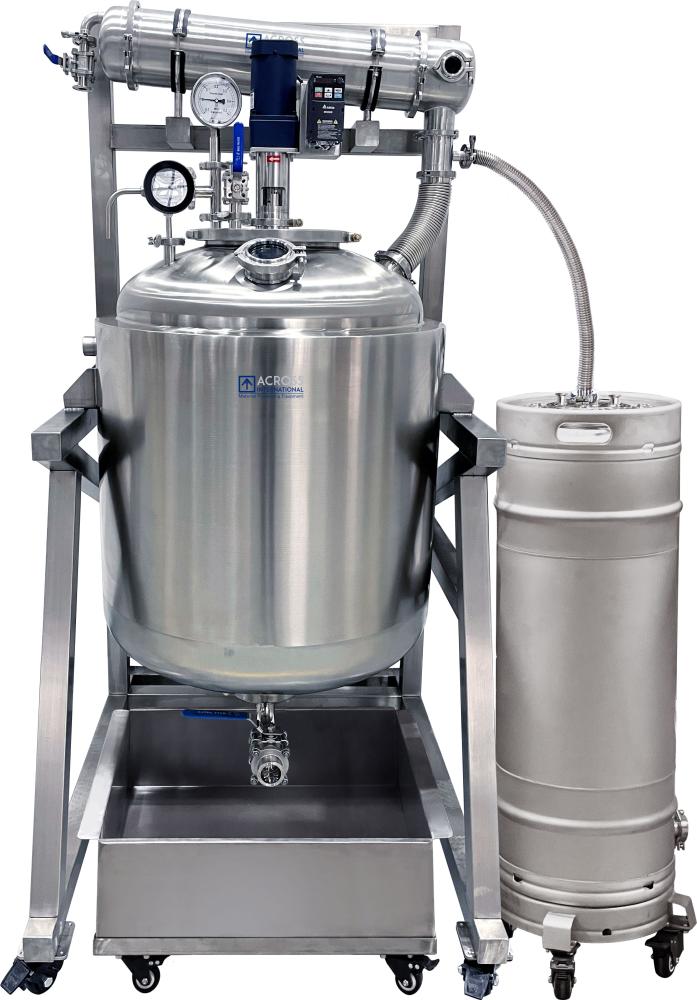

SR300 Stainless Steel Reactor with Reflux Condenser
Shell and Tube Heat Exchanger
