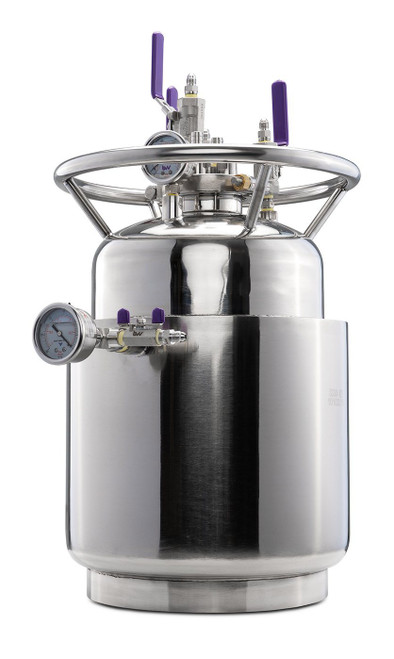

Jacketed Stainless Steel LP Tank With Internal Condensing Coil And Dip Tube
(#100 will ship via Freight ONLY)
Jacketed Stainless Steel LP tanks offer a superior way to decrease contamination of solvent and feature a tri-clamp lid with a high-pressure clamp. This allows easy access to the inside of the tank, making clean out simple, unlike a normal carbon steel LP tanks. These tanks feature an exterior jacket to allow the user to circulate fluid around the outside of the tank while having an internal condensing coil on the inside of the tank to help condense hot vapors. Lids come configured with 3 valves, compound gauge and hose barbs for the internal condensing coils to help condense hot solvent vapor when the recovery stage of the extraction process is started. These tanks come with Nai-Lok 1/4" FNPT valves and 1/4" 37 Degree JIC Flares with one port being connected to a dip tube.
Note: Tank comes empty and does not include solvent.
Butane Capacity Calculation:
-
All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline.
-
Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight.
|
Tank # |
Water Weight in Lbs |
|
Specific Gravity of Butane |
0.601 |
|
80% Fill Guidline |
0.800 |
|
(Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guildine)
|
|
Specifications:
|
Tank/Component Material |
304 Stainless Steel |
|
Gasket Material |
BUNA-N |
|
Standard |
3A High Polish |
|
Connection Type(s) |
1/4" (7/16-20) x 37° JIC |
|
|
Hose Barb |
|
Lid Connection Type(s): |
Tri-Clamp |
|
|
1/4"-20 FNPT |
|
|
Hose Barb |
|
Butane Capacity: |
|
|
25# |
12.424 |
|
50# |
24.040 |
|
100# |
48.080 |
Disclaimer: These are not DOT rated tanks and are not recommended for transportation when filled.
Note: No need to select freight options if buying #30 or #50 Tank.
