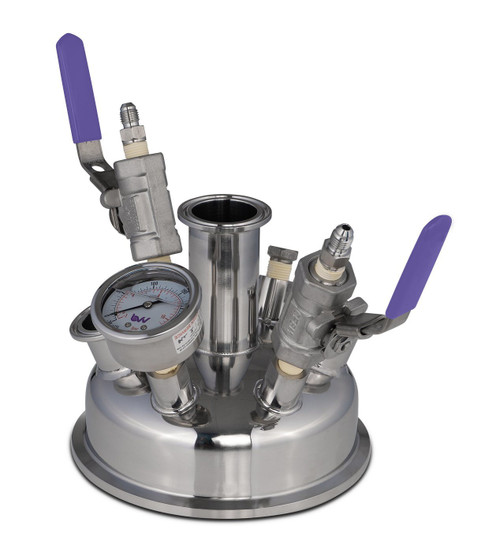

Pre-Built Hemispherical Lid with Milwaukee Valves
(This Lid is fully assembled and Nitrogen Tested for Leaks)
This Hemispherical lid is fully assembled and nitrogen tested for leaks at our warehouse. This lid comes with 2 Milwaukee valves with 1/4" 37° JIC Flares, compound gauge and the 4th hole is plugged to allow for future expansion. These lids are made out of 304 stainless steel with the middle 1.5" port having an extended tube to control solvent flow. The sight glass is 1.5" for the 6" and 10" lids. 2" for the 12" lid
Key Features:
- Pre-built and Nitrogen Tested for Leaks
- 316SS Milwaukee Valves with 1/4" 37° JIC
- 304 High Polish Stainless Steel
- Compound Gauge (-30)-0-(150PSI)
Specifications:
- Lid Material: 304 Stainless Steel
- Valve Material: 316SS Full Encapsulated PTFE Core - 1/4 Turn
- Flare Size: (2)1/4" 37° JIC
- for 6" and 10" Tri-Clamp Size(s): (1) 1.5" Ports x (2) 1.5" x 10" Tri-Clamp for
- for 12" Tri-Clamp Size(s): (1) 1.5" Ports x (2) 2" x 10" Tri-Clamp
- Nitrogen Tested: Yes
