*Note: Standard-duty dry pumps are not recommended for pumping organic, acidic, or basic vapors.
Product Details
- Economical
- Oil Free
- Adjustable Vacuum
Specification
|
Free Air Displacement @ 60 Hz, cfm (L/min) |
2.3 (65) |
|
Ultimate Pressure, torr |
7.5 |
|
Motor Power, HP (kW) at 60 Hz |
1/3 (0.25) |
|
Inlet (Exhaust) Connection Thread NPT |
1/4 |
|
Tubing Needed, I.D. in. (mm) |
3/8 (10) |
| Weight, lbs (kg) | 16.7 (7.5) |
| Dimensions LxWxH, in (mm) | 17.0x7.5x12 (430x190x310) |

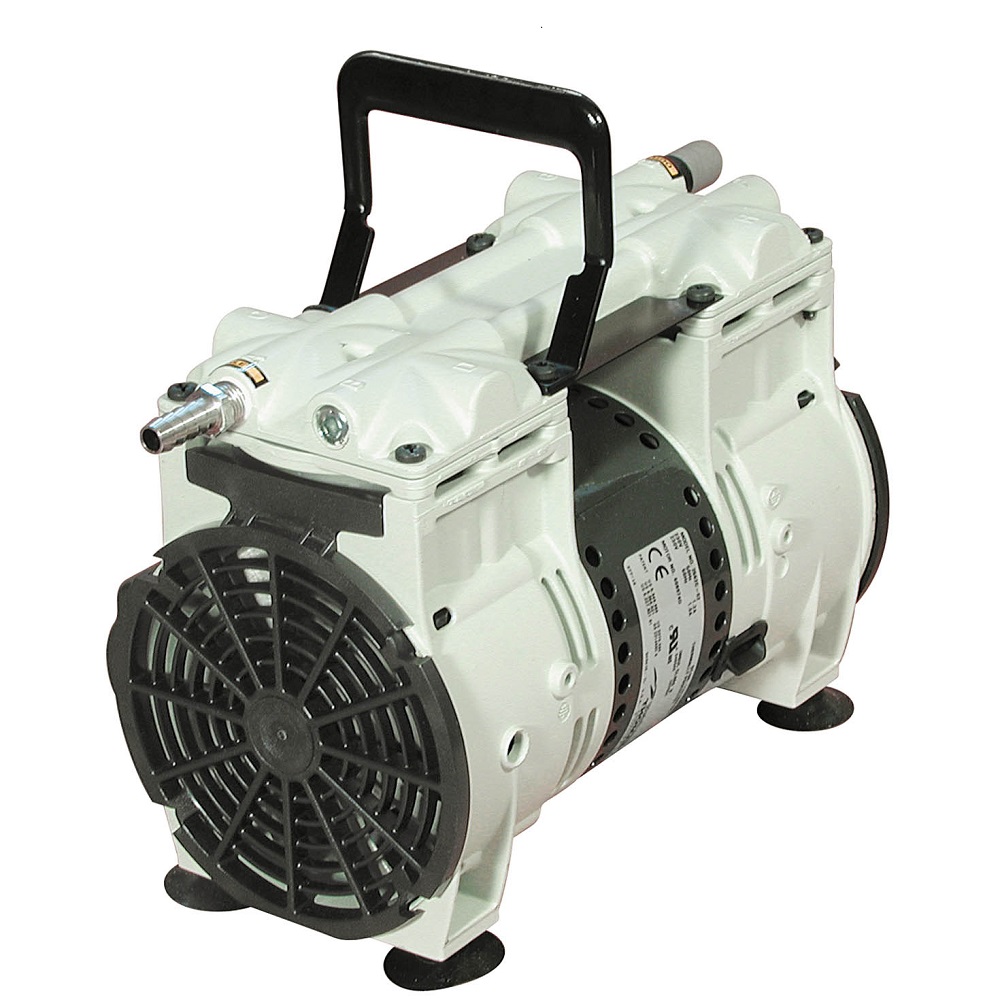

| 115V Order Number | 2562B-01 |
